Zhouxiang H beam Production Line HZJ manufacturer from China Wuxi Zhouxiang Complete Set of Welding Equipment Co., Ltd

Payment Terms:	T/T,L/C
Place of Origin:	Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HZJ

Production Capacity: 50 sets per year

Delivery Date: 60 days from receiving depo...

name: Vertical Assembly Machine f...

Means of Transport: Ocean,Land

Packing: in steel frame,naked packag...

Brand Name: Zhouxiang

color: blue or as you request

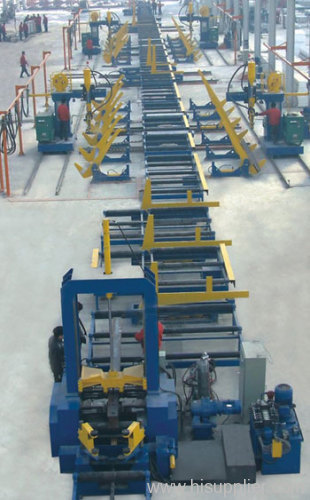

Vertical Assembly Machine is for heavy H-beam assembling.

Description

The vertical assembly machine which the flange plate, web plate, fastening and calibrating, positioning, and auto spot welding equipped, all of which accept the Japanese Mitsubishi programmable controller and the AC frequency converter so as to increase the productivity one times above comparing with common products, with the features of stable and reliable working state and the welding gun is equipped by the arc-tracing device to ensure the quality of spot welding.

Technical parameter

Size of the web			Size of the flange			Assembling speed	Power Overall
Height	Thickness	Length	Width	Thickness	Length	0.5-6m/min	9.5kw(Two weldding machines are excluded)
200-1800mm	6-32mm	4000-15000mm	200-800mm	6-40mm	4000-15000mm	0.5-6m/min	9.5kw(Two weldding machines are excluded)
